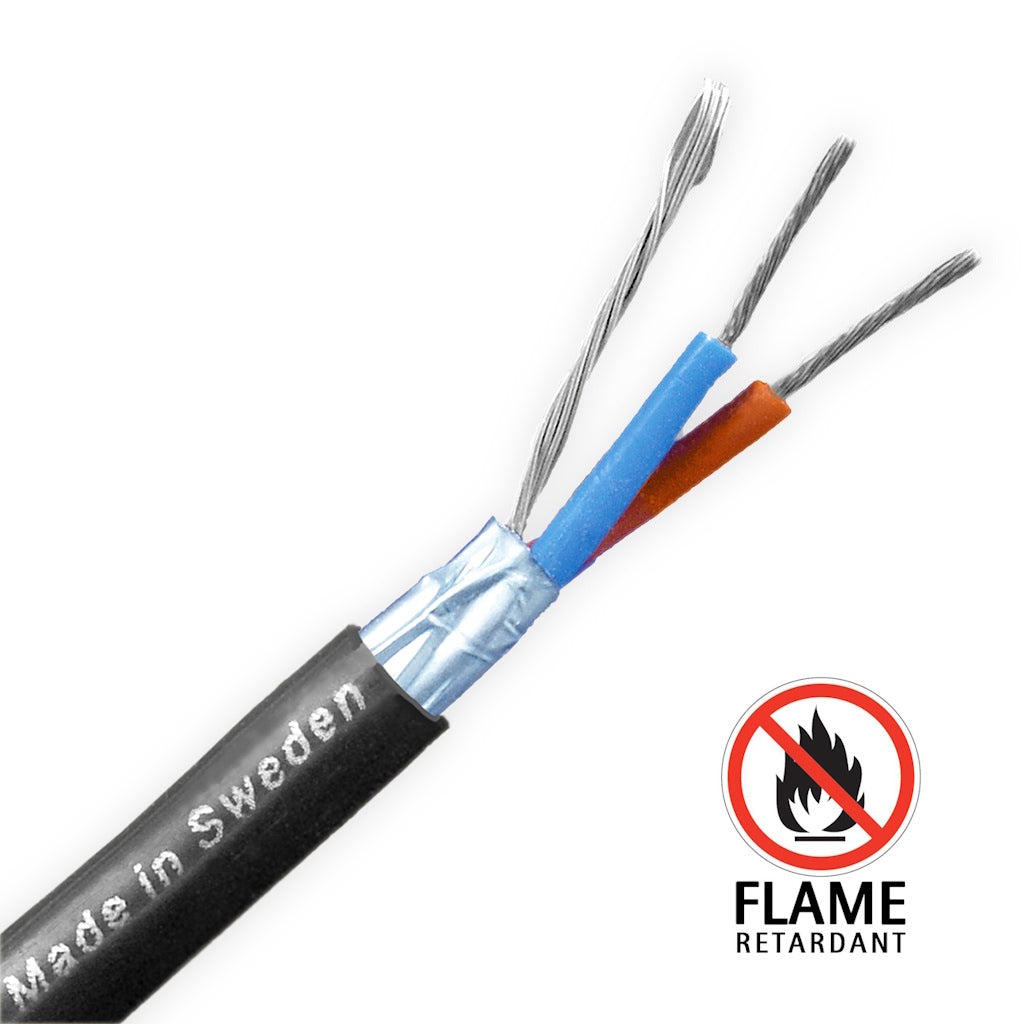

Supra MB01/H - Signal cable (loose meter)

The Supra MB01/H signal cable is a Swedish-made, halogen-free, and flame-retardant signal cable, optimized for microphone, instrument, and line applications. With its robust construction and low capacitance, it is ideal for professional environments such as stages, studios, and fixed installations, especially where fire safety and durability are crucial.

• Halogen-free and flame retardant: Made with a PE ECCOH 5943 FRHF jacket and rated according to fire class Dca-s1, d1 (smoke density: s1, particles: d1). Approved for installation in public environments according to the Swedish National Board of Housing, Building and Planning's regulations BFS 2014:3 BBR21, building class Br3, requirement E (e.g., single-family houses < 200 m² or warehouses/industries < 500 m²).

• Low capacitance and microphony: With a capacitance of only 52 pF/m and an effective aluminized PET foil shield (100% coverage), MB01/H offers negligible self-noise, ensuring clean and interference-free signal transmission.

• Tin-plated copper conductors: The 2 x 0.24 mm² (AWG 23) tin-plated copper conductors (19x0.127 mm) minimize corrosion and skin effect, providing a stable and high-quality signal for microphones, electric guitars, electric basses, and other instruments.

• Robust and flexible design: The cable is designed for tough use with a tensile strength of 500N (equivalent to approx. 50 kg) and withstands over 90,000 bending cycles according to military test standards without impact. The smooth PE jacket makes it perfect for cable pulling in conduits.

• Balanced construction: MB01/H is optimized for balanced connection with a separate ground conductor, which prevents potential equalizations that can interfere with the useful signal.

Specifications:

• Conductor: 2 x 0.24 mm² tin-plated OFC copper (AWG 23)

• Shield: Aluminized PET foil, 100% coverage

• Shield connection: Tin-plated biconductor (19x0.127 mm)

• Resistance: 72 ohm/km

• Capacitance: 52 pF/m

• Diameter: 4.8 mm (outer dimension)

• Weight: 32 kg/km

• Color: Anthracite gray

• Marking: Supra MB01/H > Made in Sweden > Metermärkning

• Suitable connectors: Supra RCA-6, RCA-6SC, Swift XLR


NOTE! "Metervara"
Select the number of meters you want and we will cut it to the length you desire.
