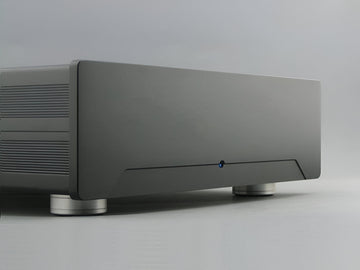

ICEpower DIY 4-channel enclosure for ICEpower 1200AS2 & 2000AS2

Build your own high-performance power amplifier with this DIY 4-channel case kit, perfectly suited for 2 x ICEpower 1200AS2 modules or 2 x ICEpower 2000AS2 (modules not included). This kit is a do-it-yourself project with all necessary parts included.

What is ICEpower DIY Case-Kit?

Note that this is a case kit, not a complete amplifier kit – it therefore does not include the amplifier module itself. Instead, you get a high-quality 100% aluminum enclosure – the best material for heat management – along with all necessary components such as connectors, screws, feet, LED, and internal wiring. The enclosure is pre-drilled for 2 x 1200AS2 modules (or 2 x 2000AS2) and can also be customized with special drilling for other compatible modules.

Easy assembly – no soldering needed

The assembly is uncomplicated and consists of only 4 parts: front panel, top, bottom, and back panel. You easily put them together into a finished enclosure without the need for instructions or guides. This kit is also completely solder-free, which makes the process even smoother.

Specifications:

• Input: Neutrik GP119 gold-plated XLR socket (screw type)
• Output: GP100 gold-plated binding posts (screw type but can be soldered if desired)
• Cables:
  • Power cables: Y-cable from AC inlet to 2 x 1200AS2
  • Signal cables: From XLR socket to amplifier module
  • Speaker cables: From amplifier module to binding posts
  • LED cable: From PSU to LED module
• Measure:
  • Internal: 288 mm (Width) x 75 mm (Height) x 365 mm (Depth)
  • External: 300 mm (Width) x 100 mm (Height) x 376 mm (Depth) (incl. feet, excl. connectors)
• Finish: Black lacquered aluminum
• LED: Blue with adjustable brightness or the option to turn off.
• Panels:
  • Front panel: 8 mm thickness
  • Cylinder head: 5 mm thickness with ventilation holes or slots
  • Base plate: 5 mm thickness, pre-drilled for modules
  • Back panel: 3 mm thickness with laser-printed text

Package contents

• Enclosure & parts:
  • Frontpanel x 1
  • Cylinder head x 1
  • Bottom plate x 1
  • Tray panel x 1
  • Aluminiumfötter x 4
  • Front support x 2
  • Screw set
• Audio components:
  • AC connection with power switch x 1
  • XLR socket x 4
  • Speaker connections (pairs) x 4
  • Dimmable LED x 1
  • Internal cabling
